• FBS-10A / FBS-10B series Heavy-Duty Bag Stitching Machine
| √ | Alta eficacia | √ | High Output |
| √ | Small Footprint | √ | Multifunción |
| √ | Buen aspecto de sellado |

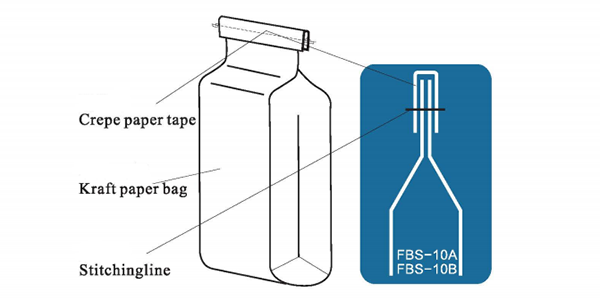

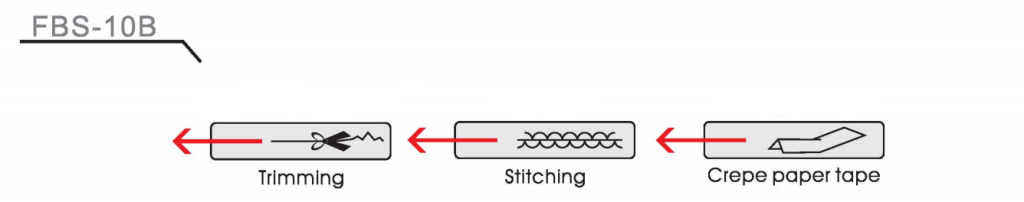

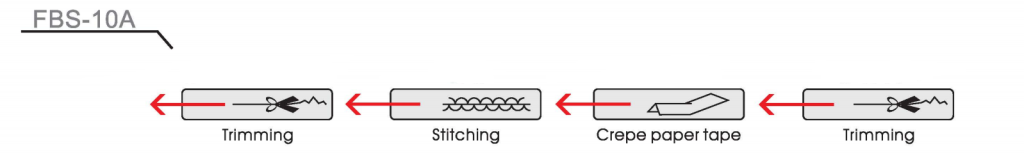

| •Mode Of Bag Top Packaging Suit for stitching packing of paper bag or woven bags after bag top folded . | •Sealing Procedure Sequence FBS-10A：Trimming-Crepe paper tape-Stitching-Trimming FBS-10B：Crepe paper tape-Stitching-Trimming |
 |
|
Ventajas del producto
| Intelligent Automation

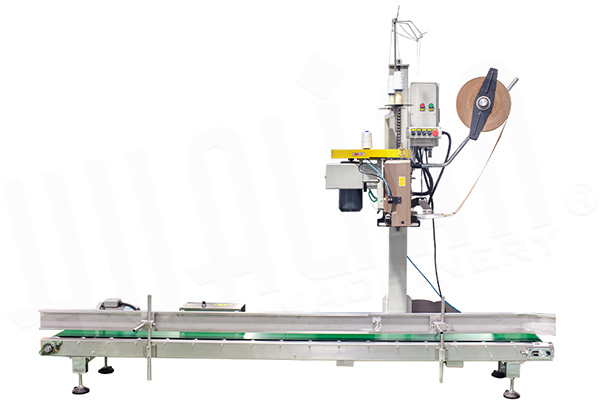

Automatic edge-binding stitching packaging machine for heavy-duty bag is suitable for edge-folding and stitching of krafe paper bag or plastic woven bags,knitting bag. it has wide application in the fields of foodstuff, feed, chemical industry. |  |
 | Strong Sewing System

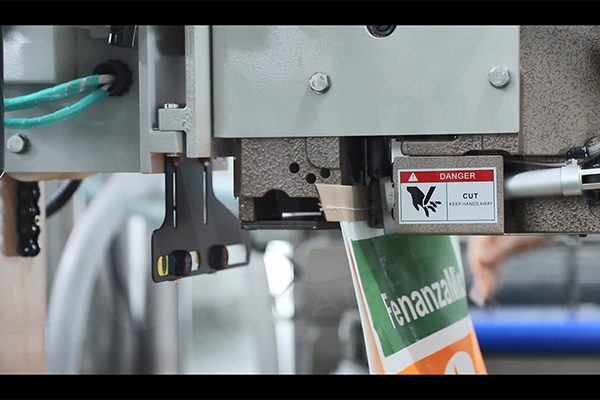

This machine adopts photoelectric control system,which could automatically and continuously finish all the processes of edge-folding, stitching, thread-snipping etc. of plastic woven bags. Its pneumatic system acts the thread-snipping and lube spray |
| Multiple seal
It can make up an automatic production line with auto.counter, filling machine and conveyor. Optional device: Edge-folder, 5 digits counter, alarm of thread broken.
|  |
| Comodidad de la reparación posventa
• Excellent after-sale purchase without worry | |
Campo de aplicación
 |  |  |
| Industria química | Industria de fertilizantes compuestos | Industria de los plásticos técnicos |
 |  |  |
| Industria de piensos | Industria de aditivos alimentarios | Médico Intermedio |
| Modelo | FBS-10A | FBS-10B |
| Voltage (V/Hz) | CA 380/50 | |
| Gross Power（KW) | 0.6 | 0.4 |
| Transmission Power（KW) | 0.18 | – |
| Motor Power of Sewing Machine（KW) | 0.37 | |
| Sealing Speed （m/min) | 10.5(Customized 8-13) | |
| Height From Sealing Center to the Floor (mm) | 700-1400 | |
| Air Source Pressure (Mpa) | 0.6 | |
| Paper Tape Width (mm) | 50 | |
| Sewing Machine Model | GK41(Optional GK-7C、DS-7C) | |
| Needle Mode | 80800×250# | |
| Sewing Machine Specification | 20S/6、20S/9 fiber thread | |
| Height Space Request of Bag Top | 150-170 | |
| Dimension(L×W×H) (mm) | 1400×1000×1870 | 750×1000×1870 |
| Peso neto (kg) | 200 | 150 |
Can I buy only the upper head without the lower base?
2kg is no problem, the maximum diameter is 200mm.
