-HVT-Sシリーズアルミニウムフィルム熱成形包装機
| √ | 新鮮に保ちます | √ | 高い生産出力 |
| √ | ダブルブッシュ真空ポンプ | √ | 簡単なメンテナンス |
| √ | パッケージラインで適用できます |
製品の利点

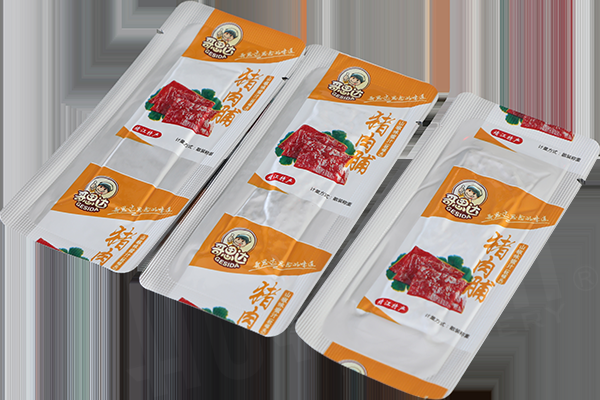

| This high-efficiency 自動包装機 is widely used to skin pack a diverse range of products, including snacks, meat, medical equipment, and hardware components. As a heavy-duty industrial packaging machine, it comes equipped with specialized modules to create round corners, easy-open notches, and hang holes. these features not only enhance the “shelf appeal” of the bag but also make the packaging more practical for the end consumer. |  |

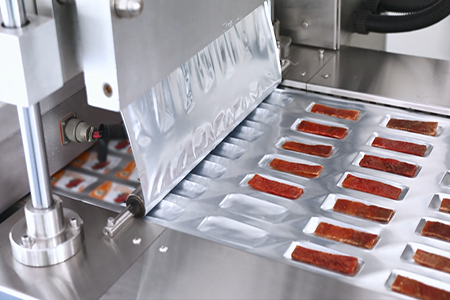

 | Our thermoforming vacuum packaging machine is engineered for maximum accuracy, utilizing advanced sensors for precise positioning. This vacuum sealer machine features an integrated deviation rectification device for both the upper and bottom film holders, ensuring the perfect alignment of graphics and text. Whether you are using transparent film or custom-printed color film, this 真空包装機 guarantees a consistent, professional look for every package.
|

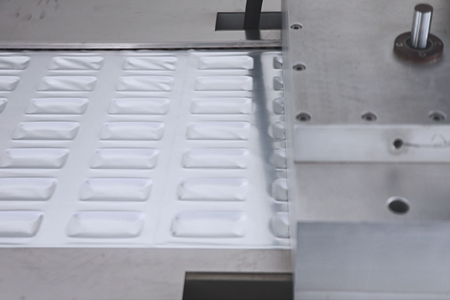

| To provide a cost-effective solution for diverse production lines, this 熱成形機 adopts a modular design with removable molds. This flexibility allows a single 熱成形包装機 to accommodate various mold sizes and product specifications. By simply switching the molds, manufacturers can quickly adapt to different packaging requirements, significantly increasing the overall utility and ROI of the equipment. |  |
応用分野
 |  |  |
| チーズ | チキン | 食事 |
 |  |  |
| 肉 | サンドイッチ | ソーセージ |
 | ||
| 野菜 |
| 冷却タイプ | 水冷 | ||
| アッパーフィルム幅（mm） | 292 | 392 | 492 |
| より低いフィルム幅（mm） | 322 | 422 | 522 |
| 包装材料 | アルミニウム化合物フィルム | ||
| 材料タイプ | 固体 | ||
| 上部フィルムの最大の深さ（mm） | ≤5 | ||
| ボトムフィルムの最大の形状の深さ（mm） | ≤10 | ||
| 容量（時間/分） | 真空、ガスフラッシング+シーリング4-6サイクル/分 | ||
| チャンバー寸法（L×w×h）（mm） | 284×（100-400） | 384×（200-400） | 484×（200-600） |
| 外部寸法（l×w×h）（mm） | 5200×1005×1895 | 5200×1105×1895 | 5200×1205×1895 |
| 純重量（kg） | 約1500 | 約2000 | 約2500 |
Thermoforming creates custom cavities from film, while tray sealing uses preformed trays. This detailed comparison explains all differences:
👉 https://www.hualianpack.com/blog/tray-sealing-vs-thermoforming-packaging-machine-12-differences
Aluminum film provides excellent oxygen, moisture, and light barrier performance, making it suitable for long shelf-life and high-value products.
Yes, it can be integrated with upstream and downstream equipment to form a complete automated packaging line.
Hualian offers proven industrial experience, reliable machine quality, and professional after-sales support—contact us today to get a tailored packaging solution.
