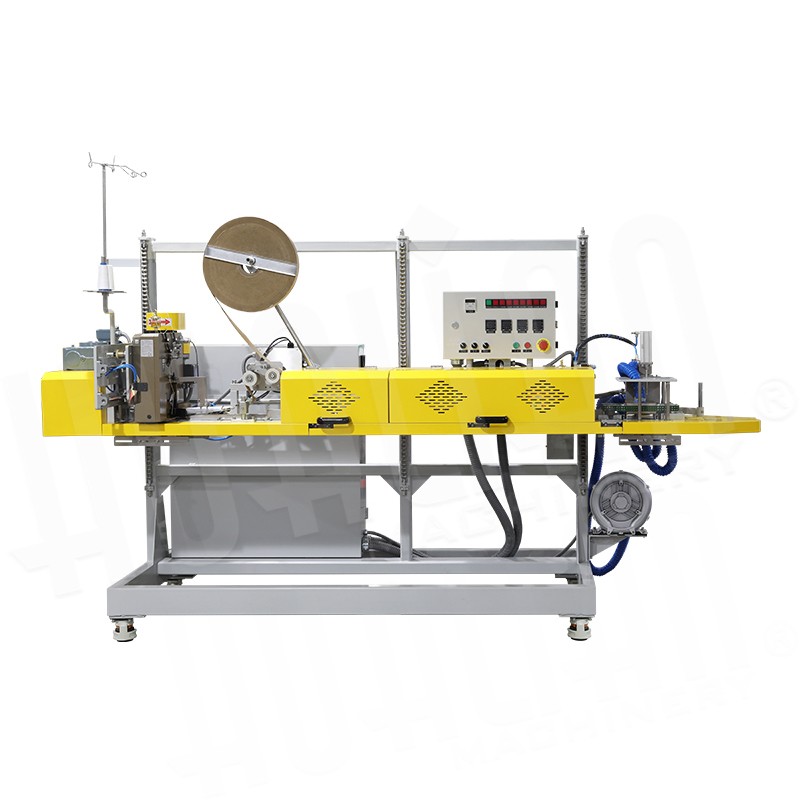

• FBHK-2 series Heavy-Duty Bag Sealing And Sewing Machine
| √ | High Efficiency | √ | High Output |
| √ | Multi-function | √ | Good Sealing Appearance |
| •Mode Of Bag Top Packaging | •Sealing Procedure Sequence |
| First seal inner PE film,then seal crepe paper tape for stitch. | Deduster Optional-Heating-Pinching-Trimming-Crepe paper tape-Stitching |
 |  |
Product Advantages
| High-efficiency Packaging This heavy-duty bag sealing machine uses specially designed clip chain system ensures that the packaging bag and sewing machine run synchronously, effectively ensuring the accuracy and stability of the heating process and improving the overall packaging effect. And it adopt polytetrafluoroethylene (TEFLON) sealing tape, which is easy to cool after heating, has a smooth surface, is not easy to stick, and is sealed. The packaging in this way has high working efficiency, good firmness of bag mouth, good airtight performance. |  |
 | Easy Operation and Maintenance The operation interface is simple, it’s easy to use without operator guidance. After turning on the switch, just set the appropriate heat sealing and heat sealing temperature. |
| Multi-function The heavy bag continuous sealing machine can be applied to various types of bags, such as woven bag, PE composite bag. It can automatically achieve dust removal (optional), heat sealing, sewing, pressing, trimming bag opening, wrapping with paper tape, sewing and other processes. |  |
 | Energy Saving And Environmental Protection Heat sealing and stitching machine with a 0.75KW air pump dust removal, it removes bag openings dust efficiently. When it detects that the package has reached a specified position, it will start the dust removal mechanism to remove the dust at the bag mouth. It can effectively reduce energy consumption and waste rate during the packaging process, reduce pollution to the environment, and meet the environmental protection requirements of modern society. |
| Connect With Packaging Line The transmission mechanism of the sealing machine adopts a special clamping chain, equipped with a frequency converter to achieve synchronization between the input of the packaging bag and the operation of the conveyor. It can form a production line with the conveyor, and can form a fully automatic packaging production line with automatic metering, automatic filling, stacking, arrow strapping and winding processes. |  |
| Convenience Of After-sales Repair Excellent after-sale purchase without worry Warranty is one year. Professional after-sale one -to-one Provide remote assistance services
| |
Application Field
 |  |  |
| Chemical Industry | Compound Fertilizer Industry | Engineering Plastic Industry |
 |  |  |
| Feed Industry | Food Additives Industry | Medical Intermediate |
| Model | FBHK-24DC |
| Voltage(V/Hz) | AC 380/50 |
| Gross Power（KW） | 6 |
| Transmission Power（KW) | 0.75 |
| Motor Power of Sewing Machine（KW) | 0.37 |
| Heating Power（KW) | 0.5×8 |
| Deduster Power（KW) | 0.75 |
| Sealing Speed(m/min) | 8.5(Customized upper limit 11) |
| Height From Sealing Center to the Floor(mm) | 800-1400 |
| The minimum distance between the top of bag (mm) | 180 |
| Temperature Range(℃) | 0-300 |
| Air Source Pressure(Mpa) | 0.6 |
| Paper tape | 55mm Crepe paper tape |
| External Dimension(L×W×H)(mm) | 3040×1137×1800 |
| Net Weight (kg) | 600 |
Regular maintenance, operation training, optimization of packaging materials
Food industry: such as the packaging of grain products such as rice and flour.
Chemical industry: such as the packaging of fertilizers, plastic particles and other products.
Building materials industry: such as the packaging of building materials such as cement, sand and gravel.
Yes, our bag dust removal function is to achieve this function
Yes, it is generally recommended that customers configure a 5-meter belt conveyor
Generally NEWLONG
Yes, the motor model and function of the explosion-proof motor can be communicated
