| √ | High Speed Sealing |
| √ | Three Sealing Options |
| √ | Dual-mode Free Switching |
| √ | Environmentally Friendly |
| √ | Adaptable To Different Carton Sizes |
Product Advantages

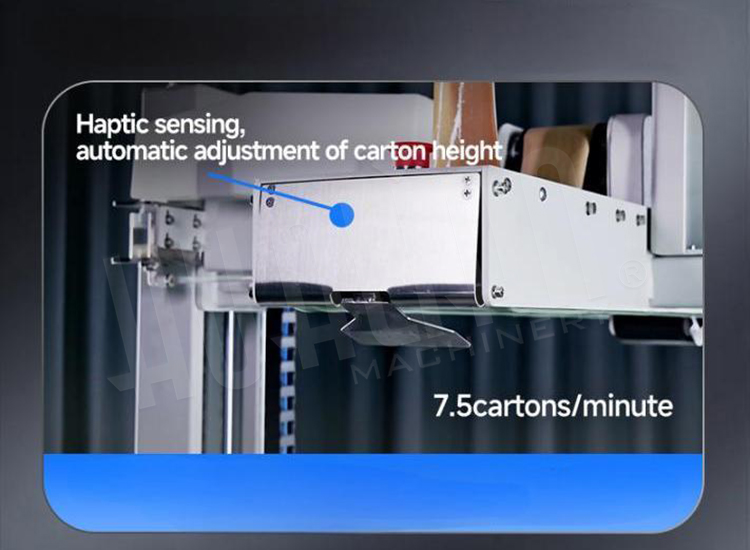

| Dual-mode Free Switching The HCS-55AW automatic carton sealer features haptic sensing technology that automatically adjusts the sealing height to match different carton sizes. This fully adaptive automatic carton sealer machine supports up to 7.5 cartons per minute, delivering stable and efficient performance for modern packaging lines. |  |

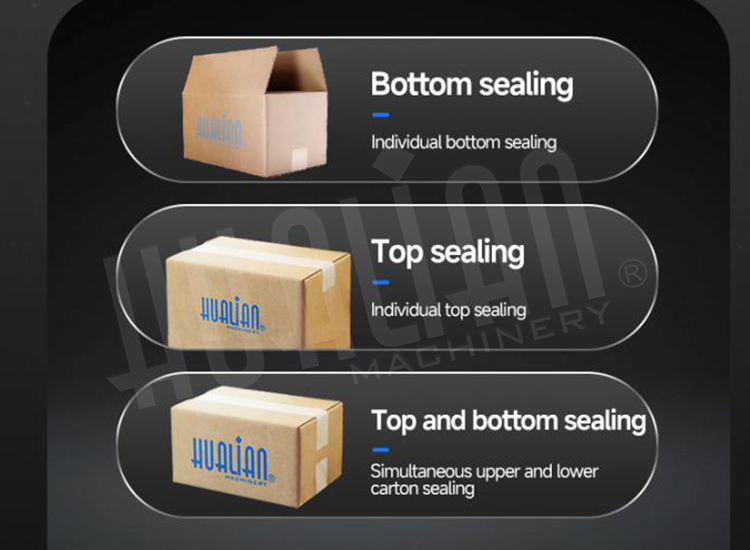

 | Three Sealing Options This advanced carton sealing machine supports three sealing configurations to meet diverse packaging needs:
Each sealing mode can be individually activated or disabled, making the machine a truly versatile automatic carton box sealing machine. |

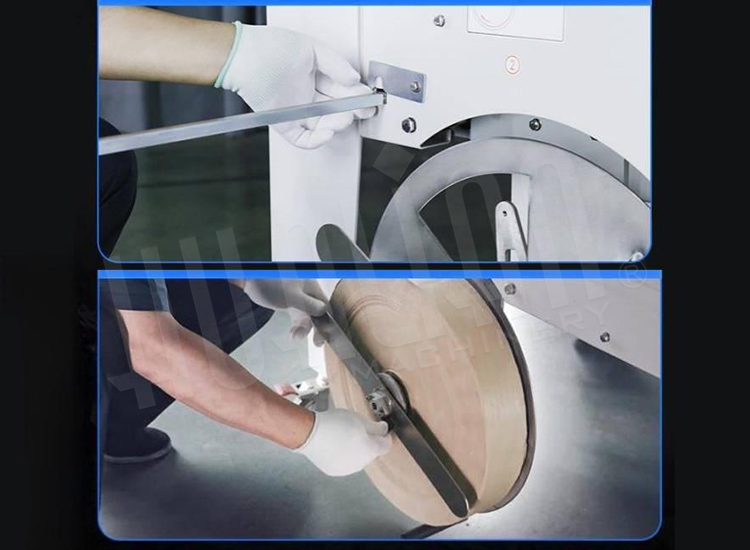

| Simple Tape Changes The lower tape translation mechanism is designed for quick and easy tape changes.It simplifies the taping process, allowing fast and hassle-free replacement of the lower tape. |  |

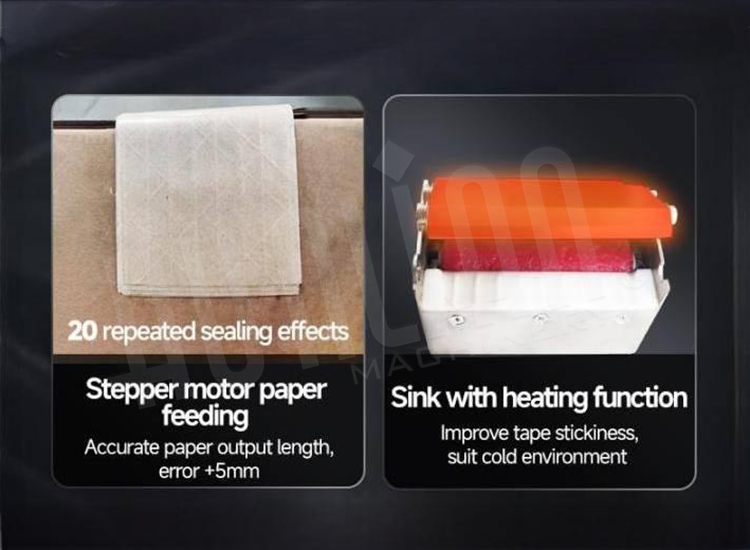

 | Precise & Reliable Sealing We tested the carton sealing 20 times repeatedly, and the wet adhesive paper had very low error. The carton sealing machine uses a stepper motor to feed the paper, and the paper output length is accurate with an error of ±5mm. At the same time, the water tank has a heating function to improve the stickiness of the tape, and it is also suitable for cold environments. |

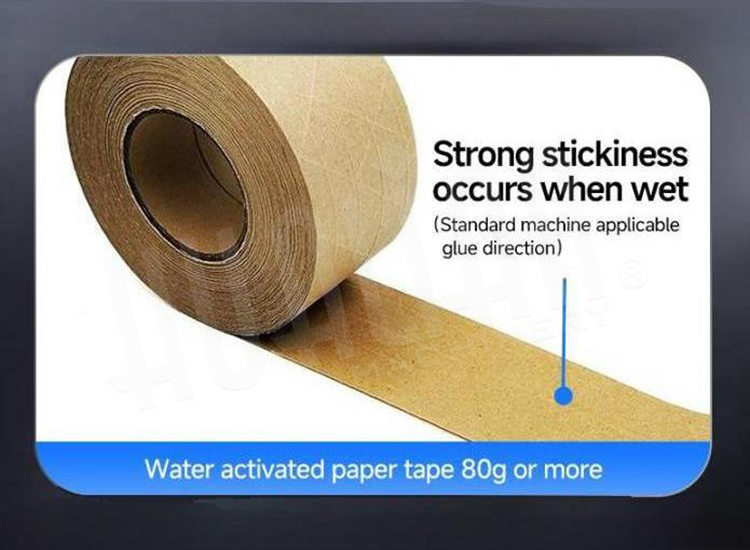

| Strong Sealing The water activated paper tape used is more than 80 grams, and it is extremely sticky after being wetted. The water tank has a heating function to increase the stickiness of the tape. Our wet water activated paper tape sealing machine is not only environmentally friendly, but also can enhance the sealing strength. |  |
Application Field
 |  |  |
| Beverages&Dairy | Daily Chemical | E-commerce Logistics |
 |  |  |
| Electrical Appliances | Food | Medicine |
 | ||
| Snack Food |
| Model | HCS-55AW |
| Voltage (V/Hz) | AC 220/50 110V/60 |
| Power (W) | 600 |
| Speed(m/min) | 20(around 15 boxes/min) |
| Max. Carton Size (W×H) (mm) | Unlimited×500×500 |
| Min. Carton Size (W×H) (mm) | 170×170×130 |
| Table Height (mm) | 720-890 |
| Adhesive Tape | Water-Activated Tape |
| Outer Dia.of tape roll (mm) | 420 |
| Width of Tape (mm) | 48-75 |
| Length of Tape Head (mm) | 45-90 |
| External Dimensions (L×W×H) (mm) | 1510×1115×(1970-2090) |
| Net Weight (kg) | 299 |
It supports cartons of different heights and widths thanks to its haptic sensing auto-adjustment system.
No. It is designed specifically for water activated tape or gummed paper tape to ensure strong and eco-friendly sealing.
Choose it when your packaging line requires high speed, reduced labour, or frequent changes in carton size.
Water activated kraft paper tape 80g or above provides optimal bonding strength and sealing performance.
