| √ | Fast And Stable |
| √ | Easy To Operate |
| √ | All Sizes Of Cartons |
| √ | Strong And Durable |
Product Advantages

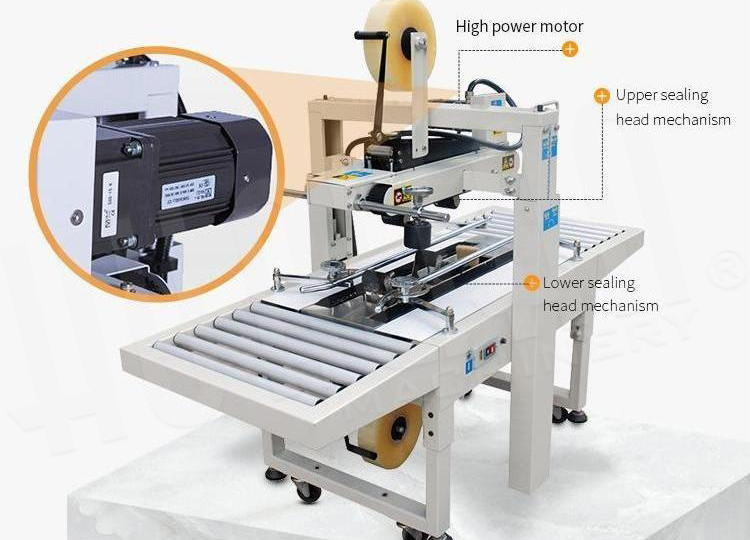

| High Efficiency This carton machine adopts high-power double motor up and down drive design, the upper and lower sealing boxes are completed in one time. About 1000 standard cartons per hour, Fast and stable completion of sealing operation. |  |

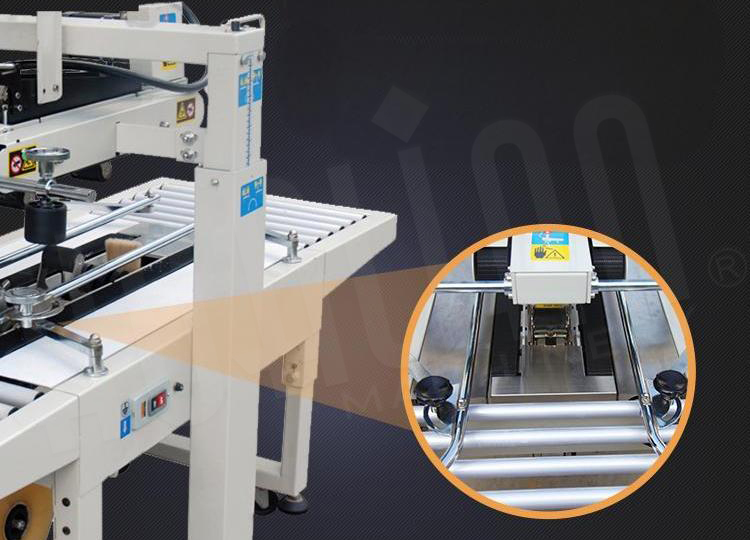

 | High Quality And Durable Selected high-quality imported aluminum alloy roller,combined with high grip conveyor belt, can make the carton pass quickly on the smooth roller. And the worktable adopts thickened frame wrapping process, which makes the conveying more stable. The machine body is solid, wear-resistant, rust free, long service life. |

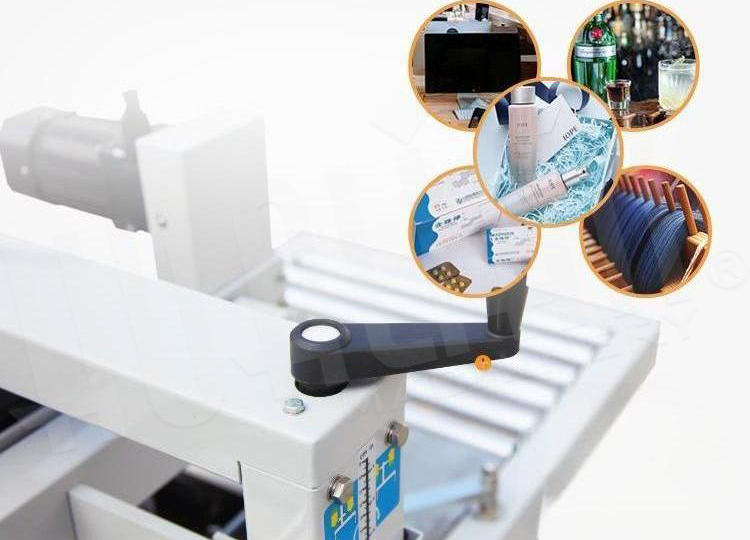

| Range Of Application It’s widely used in the fields of domestic electrical appliance, foodstuffs, cosmetics,daily necessities, medicine, chemical industry and other industries. And our carton sealing machine can be used in any industry that needs to pack goods into boxes. |  |

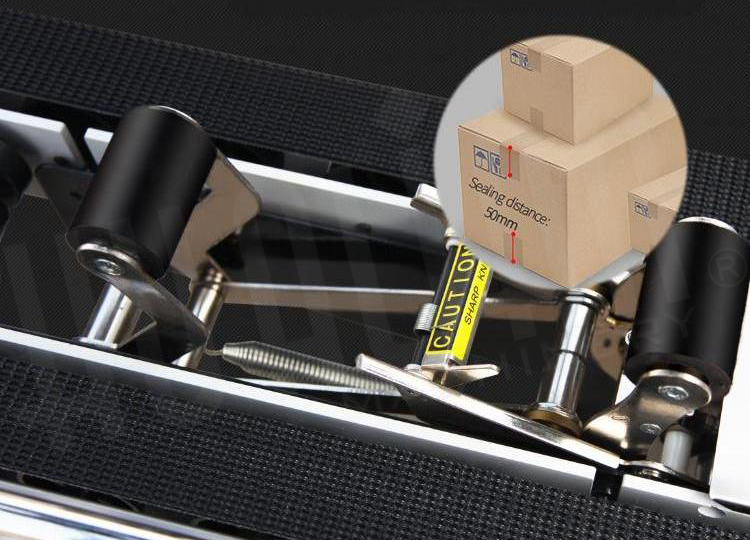

 | Beautiful Sealing Effect This carton sealing machine adopts up and down drive transmission, with even power and smooth operation; it is equipped with an efficient pressure wheel system, which can firmly compact the tape. With the tape specially designed for carton sealing, it can better fit the surface of the carton, effectively avoid bubbles and wrinkles, and the sealing effect is flat and beautiful. |
Application Field
 |  |  |
| Beverages&Dairy | Daily Chemical | E-commerce Logistics |
 |  |  |
| Electrical Appliances | Food | Medicine |
 | ||
| Snack Food |
| Model | FXJ-6050 |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 200 |
| Max. Carton Size (W×H)(mm) | 500×600 |
| Min. Carton Size (W×H)(mm) | 180×130 |
| Speed (m/min) | 20 m/min（30 cartons/min） |
| Adhesive Tape Materials | BOPP, PVC adhesive tape, water-free adhesive tape |
| Height of Table (mm) | 635-780 |
| Width of Adhesive Tape (mm) | 48，60，76（optional） |
| External Dimensions (L×W× H)(mm) | 1755×800× (960-1605) |
| Net Weight (kg) | 150 |

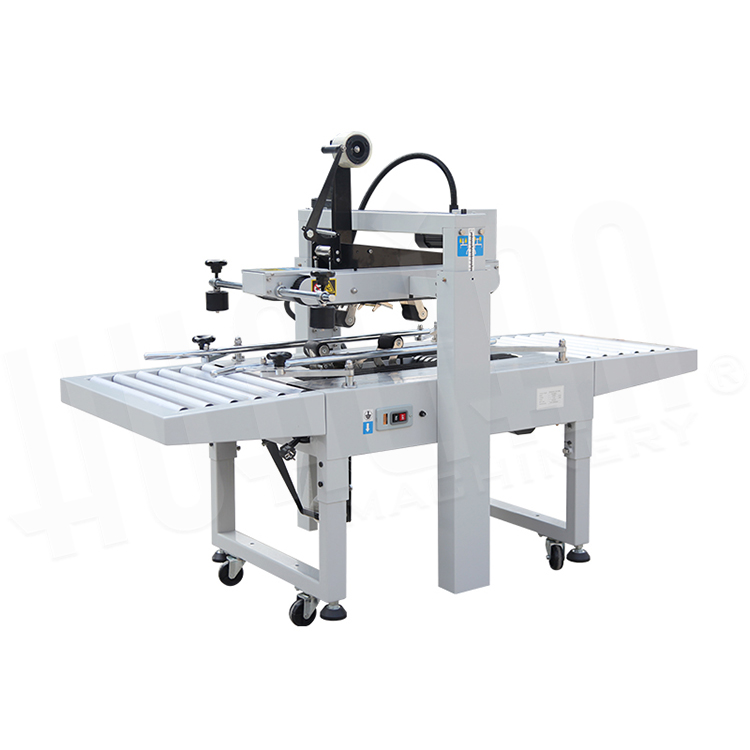

The FXJ-6050 Semi-automatic Carton Sealer Machine is designed to accommodate cartons ranging from a minimum size of 180 × 130 mm to a maximum size of 500 × 600 mm. Its adjustable height feature allows for easy adaptation to various carton dimensions, making it versatile for different packaging needs.
The FXJ-6050 operates at a speed of 20 meters per minute, capable of sealing up to 30 cartons per minute, depending on carton size and operator efficiency. This high-speed performance ensures efficient packaging operations.
The machine supports various adhesive tapes, including BOPP, PVC, and water-free adhesive tapes. It is compatible with tape widths of 48 mm, 60 mm, and 76 mm, providing flexibility to meet different sealing requirements.
The FXJ-6050 can function as a standalone unit or be seamlessly integrated into existing production lines. Its design allows for easy incorporation, enhancing overall packaging efficiency.
The FXJ-6050 is ideal for industries such as food and beverages, daily chemicals, e-commerce logistics, electrical appliances, and pharmaceuticals. Its versatility makes it suitable for various packaging applications across different sectors.
Equipped with high-quality imported aluminum alloy rollers and a high-grip conveyor belt, the FXJ-6050 ensures smooth carton movement. The efficient pressure wheel system firmly compacts the tape, resulting in a flat and aesthetically pleasing seal without bubbles or wrinkles.
