| √ | High Speed | √ | 3m Compact Body |
| √ | BUSCH Vacuum Pump | √ | Low Energy Consumption |
| √ | 304 Stainless Steel |
Product Advantages

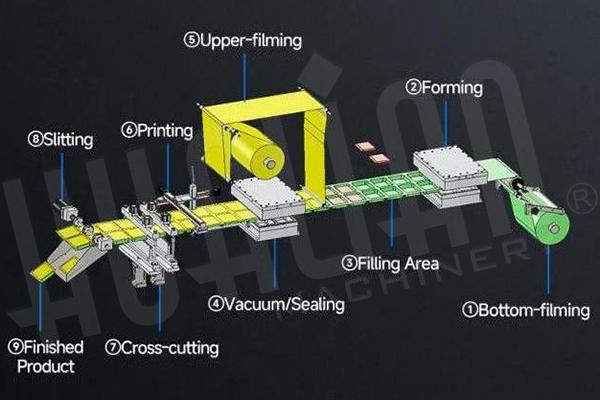

| High Efficient The machine is equipped with a 200m3/h BUSCH vacuum pump, and integration of forming, stuffing,sealing,slitting,etc. Achieving a high-speed production rate of 4-6 cycles per minute and increasing production capacity. It ensuring high energy efficiency with low operation and maintenance cost, and this dual system reduces both initial investment and long-term expenses. |  |

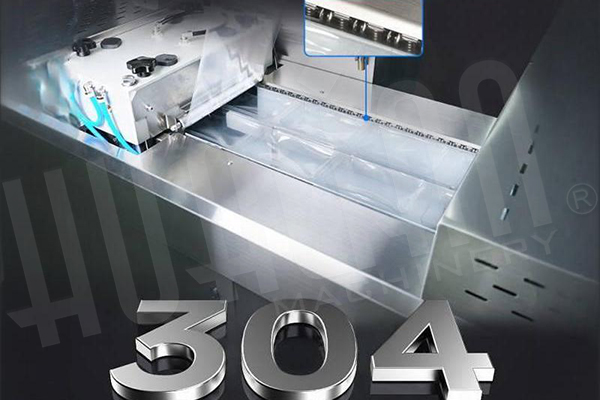

 | Food-grade Material And Stable Structure The thermoforming packer is made of 304 Stainless Steel and Aluminum Alloy,balancing structural durability with lightweight design. It features an imported film clamping chain that delivers strong clamping force, ensuring stable film holding and minimizing waste. |

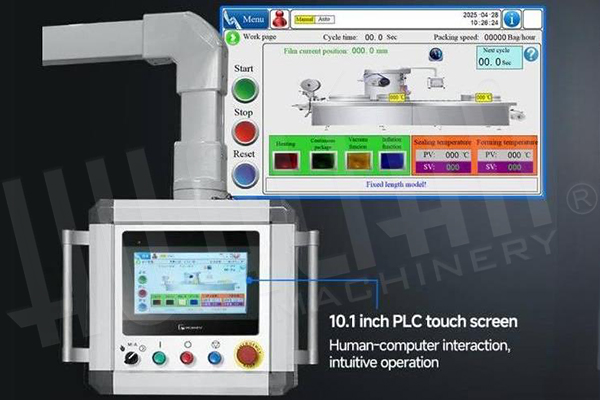

| Humanized Smart Screen This thermoforming packaging machine features a 10.1-inch PLC touch screen for intuitive human-computer interaction. With clear functions and novice-friendly operation, it ensures stable production—delivering simple, smart control for efficient performance. |  |

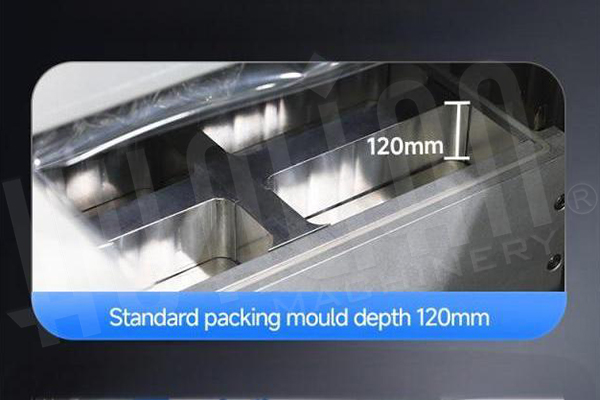

| Adoption Of Combined Moulds This multi-functional thermoforming packaging machine adopts a four-locking device design, and the mold can be easily replaced, which can be completed in 20 minutes, realizing multiple uses of one machine. |

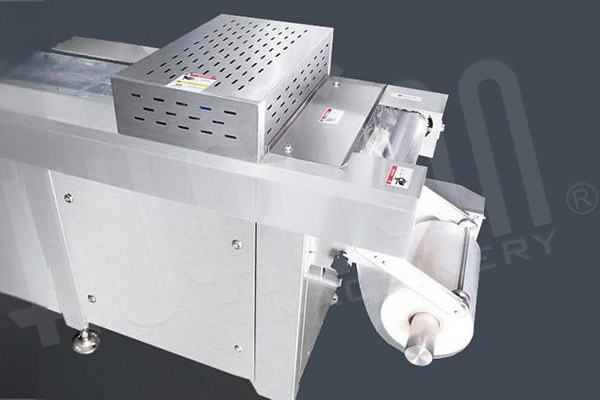

| Intelligent Bottom Film Conveying System Bottom Film Conveying System features smooth, wrinkle-free film feeding and quick film change capabilities. The system also includes automatic bottom film forming, which can be customized to handle materials of different sizes. |  |

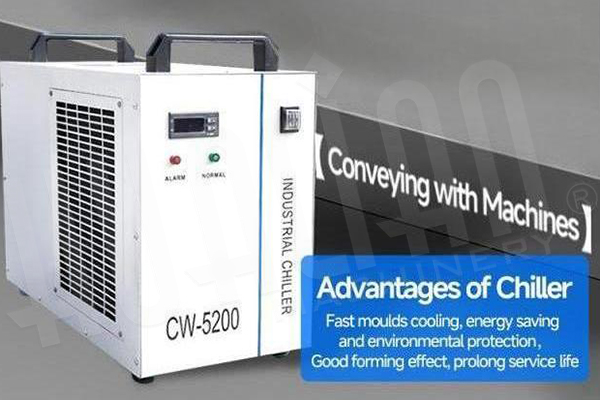

 | High-quality Core Component The machine use a high-quality Extemal Vhiller, the chiller offers fast mold cooling, energy-saving operation, and environmental benefits—enhancing forming quality while extending equipment service life. |
Application Field
 |  |  |
| Cheese | Chicken | Meal |
 |  |  |
| Meat | Sandwich | Sausage |
 | ||
| Vegetables |
| Model | HVR-320A(Q) |
| Supply Voltage | 380V/50HZ 3P |
| Sealing Power(W) | 2000 |
| Gas Pressure(Mpa) | 0.5-0.8 |
| Upper Film Width(mm) | 292 |
| Bottom Film Width(mm) | 322 |
| Chamber Size(L*W)(mm) | 284*(200-400) |
| Capacity(times/min) | Vacuum+Heat Sealing 4-6 times/min |
| Pump Exhaust Capacity(m3/h) | 200 |
| Max Forming Depth(mm) | ≤120 |
| Dimension(L*W*H)(mm) | 3012*1014*1905 |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Yes, you need to punch the die.
The lower film is made of PA/PP, and the upper film is PA/CPP.
Preheat first and then vacuum forming.
In order to better protect the life of the machine, it is recommended not to work continuously for more than 8 hours. If it exceeds 8 hours, it needs to be shut down and cooled for about half an hour before it can continue to work, otherwise it will shorten the service life of the vacuum pump and airbag.
It takes two people to replace it together1). Take out the lower mold of the molding chamber, be careful not to damage the tooth knife, and be careful not to bring out the O-type silicone strip2). Take out the lower mold of the vacuum chamber and replace it. The molds are all used as a set3). One disc cutter needs to be removed, and the upper seat of the disc cutter also needs to be removed, and then adjust the position of the disc cutter.
