Strong driving force carton sealing and strapping, one-time completion
| √ | High Efficiency |
| √ | Stable Operation |
| √ | High Reset Accuracy |
| √ | Wide Range Of Application |
Configure Device Details :
One FXJ-5050Lsemi-automatic carton sealing machine +one KZ-8060/D high automatic strapping machine +one SJG-100/66unpowered roller conveyor
Product Advantages

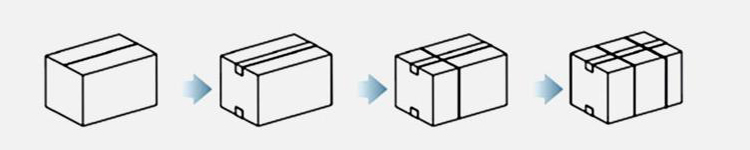

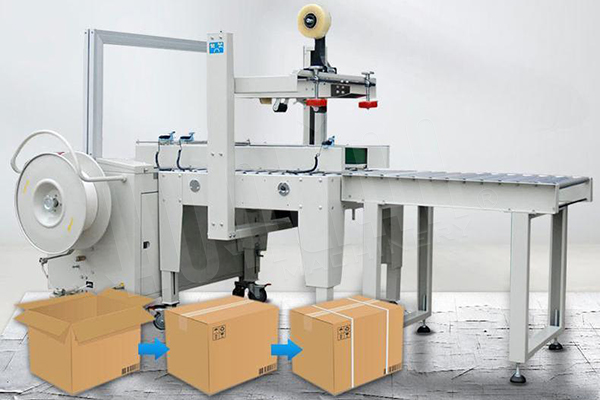

| High Efficiency Automatic carton sealing strapping packing line is composed of semi-automatic carton sealing machine,high automatic strapping machine and conveying frame.Achieving the upper and lower carton sealing of the carton and the single or double strapping of the carton. This carton strapping packaging line arranged in a straight line, it reduces the handling of personnel and improves production efficiency. |  |
 | Wide Range Of Application This carton sealing and strapping line has a wide range of applications. The carton size range is 600*500*500-300*130*180mm, and it can be easily applied to cartons of different sizes. And the strapping machine of this line can be applied to 9-15mm PP belt without replacing any parts (Note: 9mm belt needs to be replaced with lower right guide rail assembly) |

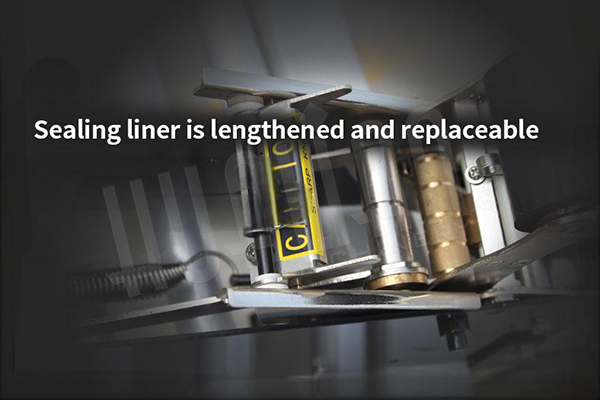

| Beautiful Sealing Effect The sealing liner is upgraded with a lengthened and replaceable design. And it delivers flat and firm cuts, creating a neat and attractive seal. The liner is wear-resistant, and users can choose between the standard or extended version based on their packaging requirements. |  |

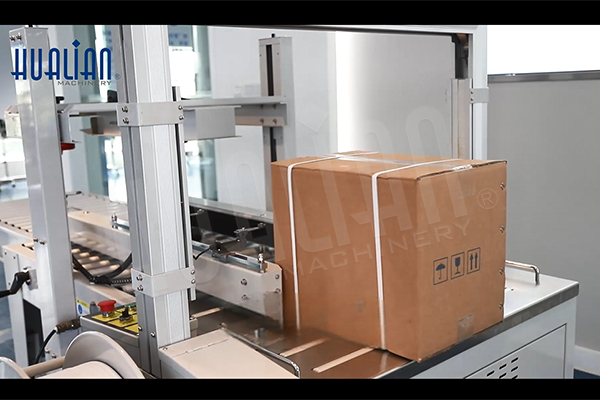

 | High Accuracy Equipped with intelligent programmable PLC control, the machine features a simple and compact structure, ensuring high reset accuracy and consistent carton sealing and strapping force for stable and reliable performance. |

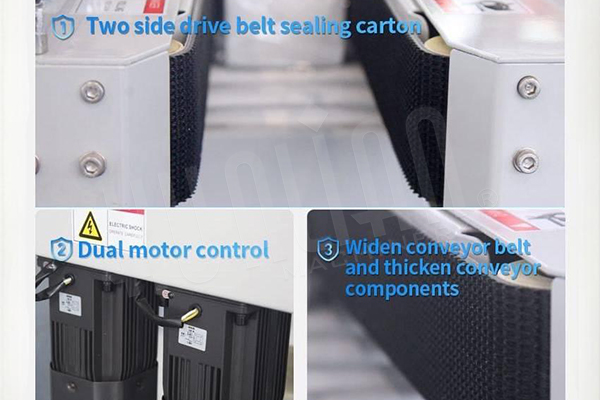

| High Quality Core Components This carton sealing machine features dual-side drive belts for firm and stable transport of relatively heavy cartons, making it easier and faster to seal both the top and bottom simultaneously. Equipped with dual motor control, it ensures strong power, stable operation, and low noise. The widened conveyor belt and reinforced components provide excellent rolling performance and smooth, high-capacity conveying. |  |
Application Field
 |  |  |
| Beverages&Dairy | Daily Chemical | E-commerce Logistics |
 |  |  |
| Electrical Appliances | Food | Medicine |
 | ||
| Snack Food |
| Model | XFK-1C |
| Voltage (V/Hz) | AC 380/50 220/60 110/60 |
| Gross Power (W) | 1050 |
| Max. Carton Size (L× W×H) (mm) | 600×500×500 |
| Min. Carton Size (L× W×H) (mm) | 300×130×180 |
| Speed (m/min) | 16 |
| Productive Capacity (pcs/h) | 600 |
| Height of Table (mm) | 750 or 830 |
| Adhesive Tape (mm) | BOPP, PVC adhesive tape, water-free adhesive tape，width 48、60、76mm（Optional） |
| Available Strapping Belt (mm) | plastic strapping belt，width9~15 thickness0.5~1.1 |
| External Dimensions (L×W×H) (mm) | 2650×1420×1565 |
| Net Weight (kg) | 385 |
Supports cartons from 300 × 130 × 180 mm up to 600 × 500 × 500 mm, suitable for various packaging needs. The line automatically adjusts carton size for both top & bottom tape sealing and strapping.
Operates at 16 meters per minute, capable of up to 600 cartons per hour.
Semi-automatic carton sealer (FXJ-5050L)
Automatic strapping machine (KZ-8060/D)
Unpowered roller conveyor (SJG-100/66)
220V / 50Hz, power ~200 W. Compatible with standard industrial electrical setups.
Yes. Works standalone or integrates with current packaging lines, improving efficiency and workflow.
Food & beverages, daily chemicals, e-commerce logistics, electronics, and pharmaceuticals. It provides an efficient solution for combined top & bottom tape sealing and strapping.
