| √ | High Efficiency |
| √ | Light Weight |
| √ | Easy to Operate |
| √ | Firm and Stable Structure |
Product Advantages

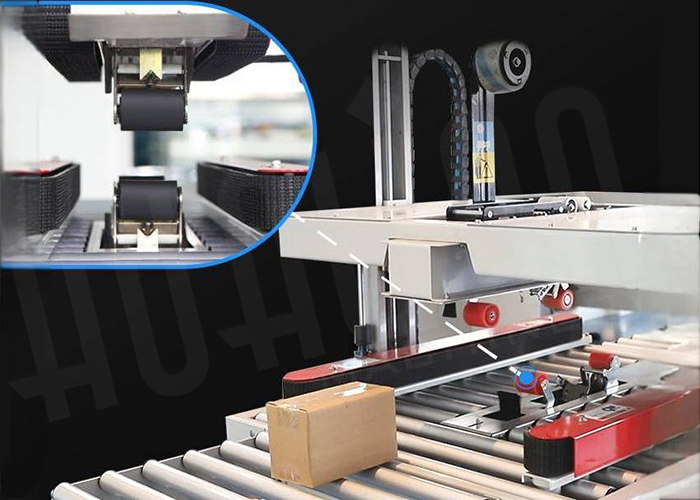

| High Efficiency The automatic carton sealing machine can adjust different cartons at will, and can complete the upper and lower carton sealing actions at the same time, which is easy and quick to operate. The pneumatic tape random carton sealer can adapt to various cartons of different specifications, and can complete the carton sealing action without manual adjustment, which is highly efficient. |  |

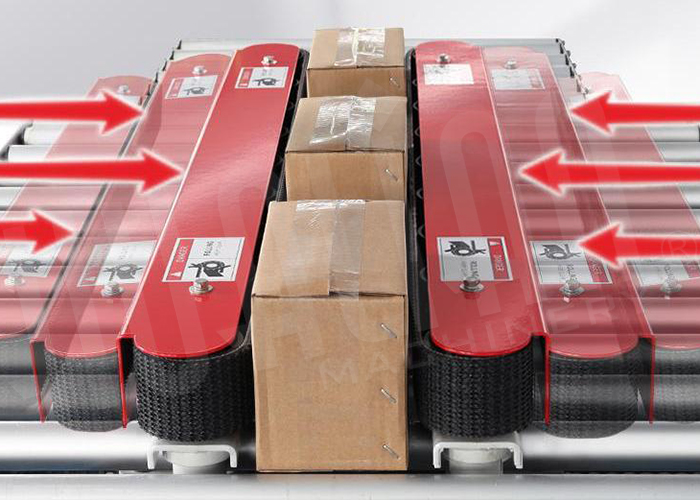

 | Flexibility The automatic carton sealer machine has two adjustable specification modes. One is the fixed carton specification mode, where you only need to set the size and push the carton into the device to seal it. The other is the automatic adaptation mode for multiple carton specifications, which can adapt to a variety of cartons of different specifications and complete the sealing action without manual adjustment. |

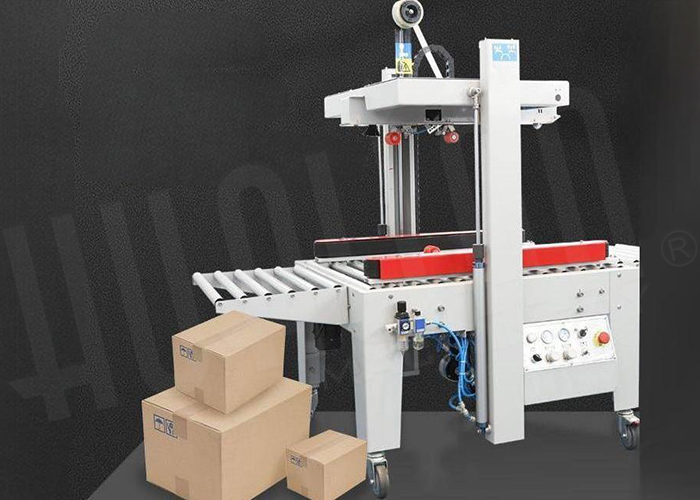

| Simple Operation This fully automatic case sealer is easy to use. After adjusting the sealing size of the equipment, you only need to push the carton in and the equipment will complete the sealing action. At the same time, the buttons on the control panel are simple and clear to operate, and you can easily get started without guidance |  |
 | Widely Application The automatic random carton sealer has a wide range of applications and is often used in food, beverage, daily chemical industry, e-commerce logistics, electronic and electrical industries, etc. It has a wide range of sealing size adjustment and is suitable for cartons of various specifications, so it is favored by many industries. |
Application Field
 |  |  |
| Beverages&Dairy | Daily Chemical | E-commerce Logistics |
 |  |  |
| Electrical Appliances | Food | Medicine |
 | ||
| Snack Food |
| Model | FXJ-5050QS |
| Voltage (V/Hz) | AC 220/50 110/60 |
| Power (W) | 220 |
| Gas Pressure (Mpa) | 0.4~0.6 |
| Max. Carton Size (W×H) (mm) | 500*500*Unlimited |
| Min. Carton Size (W×H) (mm) | 80*90*130 |
| Taping Speed (m/min) | 20 |
| Adhesive Tape Used | BOPP Water-free Adhesive Tape PVC Adhesive Tape |
| Height of Table (mm) | 580-780 |
| Max.Loading Weight(kg) | 30 |
| Max.External diameter of Tape(mm) | 250 |
| Width of Adhesive Tape (mm) | 36,48 |
| External Dimensions (L×W×H) (mm) | 1800*960*(1330-1530) |
| Net Weight (kg) | 195 |

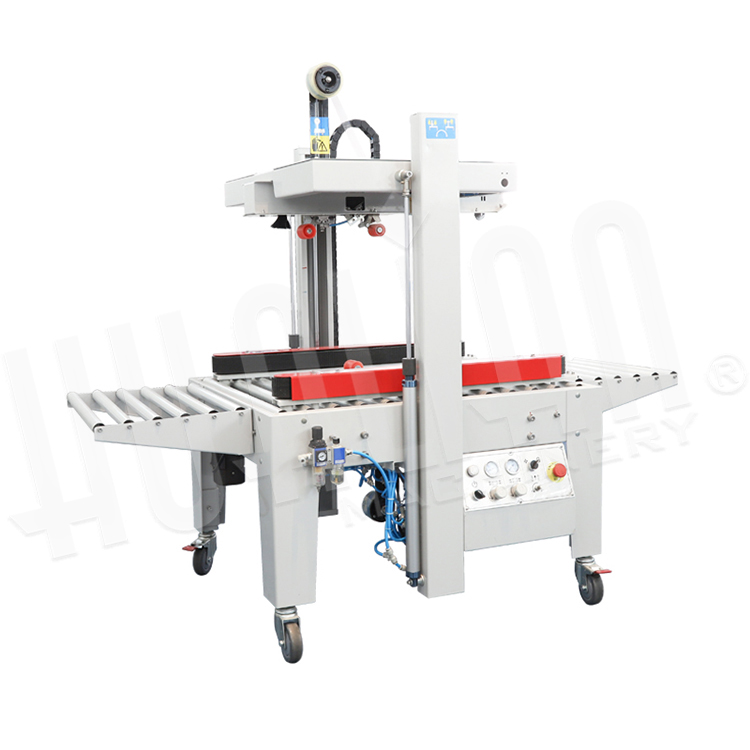

This pneumatic random box sealer automatically adjusts to different carton sizes without manual settings. It can handle boxes up to W500 × H500 mm and as small as W80 × H90 × L130 mm.
This automatic pneumatic carton sealing machine can work as a standalone unit or connect to a conveyor system for fully automated top & bottom carton sealing, improving productivity and efficiency.
The FXJ-5050QS supports BOPP, PVC, and water-free adhesive tapes, typically 36 mm or 48 mm wide. Customized options for 60 mm or 76 mm tapes are available for larger cartons.
Air pressure: 0.4 – 0.6 MPa
Voltage: AC 220 V / 50 Hz or AC 110 V / 60 Hz
Power: About 200 W
The tape speed is approximately 20 m/min. Under fixed-size operation, it can seal 25–45 cartons/min. Under random-size mode, it seals about 10–25 cartons/min, depending on carton size and operator skill.
Hualian offers customization for larger cartons, special tape widths, or specific conveyor connections to fit your production line. This ensures the machine meets various industrial packaging requirements.
