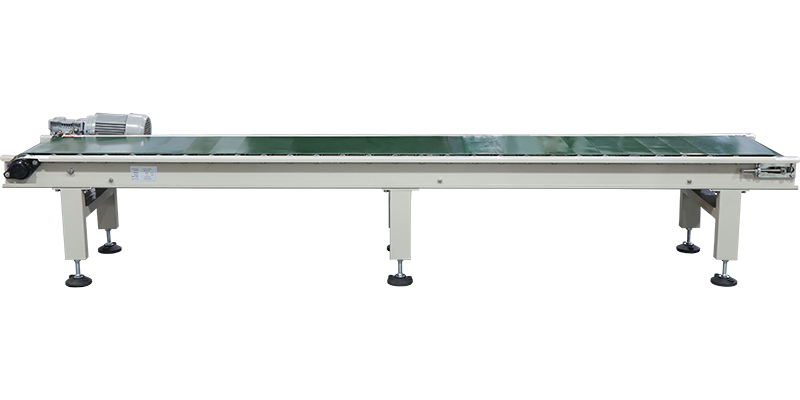

•SJB series Belt Conveyor
SJB-500/35: 5- Meter Belt Conveyor SJB-300/35: 3- Meter Belt Conveyor
Matching Mode Between Packaging Machine And Conveyor:
| Packaging Machine Model | Conveyor |
| FBK Series, FBH Series, FBP Series, FBC Series, FBF Series | SJB-500/35 |
| FBK-10 Series, FBK-20 Series, QF Series, DZQ Series, FR-1120AL/ST | SJB-300/35 |
 |  |
| 3-Meter Conveyor Match with FBS-20 | 5-Meter Conveyor Match with FBC-2 |
| Model | SJB-500/35 | SJB-300/35 |
| Voltage (V/Hz) | 3PH AC 380/50 | |
| Conveying Power（KW) | 1.5 | 0.75 |
| Speed （m/min) | 0-11(adjustable) | |
| Max Loading Weight (KG) | 50KG×4 | 50KG×2 |
| Vaild Belt Lenght (KG) | 5000 | 3000 |
| Vaild Belt Width (KG) | 350 | |
| Distance to the Floor (mm) | 420-520 | |
| Dimension (L×W×H)(mm) | 5000×550×450 | 3000×550×450 |
| Net Weight (kg) | 100 | 80 |
A Belt Conveyor is used for smooth, continuous material transport in production and packaging lines.
Yes. The structure supports stable conveying under long-term heavy-duty operation.
Choose based on product size, load weight, line speed, and production layout.
Regular cleaning and occasionally adjusting belt tension are usually enough.
