| √ | High Efficiency | √ | High Output |
| √ | Easy Operation | √ | Multi-function |
Product Advantages
| High-efficiency
The bagging machine can supply bags efficiently and quickly, and is equipped with a conveyor belt to form a packaging linkage production line. The entire line control system uses the most advanced PLC technology to automatically complete bagging, bagging, filling, bag mouth exhaust and leveling and conveying to the sealing unit, greatly improving packaging efficiency while saving labor costs. |
 |
 |
High Flexibility
In response to the factory’s different packaging requirements, the bagging machine can replace packaging bags of different specifications in a short period of time, and is very flexible in use. |
| Assembly Packaging line
This bagging machine must form a production line with a conveyor, and can form a fully automatic packaging production line with automatic metering, automatic sealing, stacking, arrow threading, strapping and winding processes. |
 |
 |
Multi-function
The bagging machine has a bagging detection function. If the bagging fails, it will alarm and stop, and the empty bag will be taken away manually. It also has an automatic bag sorting function. When the packaging bag arrives at the position, the bag mouth will be automatically straightened. |
|
Convenience Of After-sales Repair Excellent after-sale purchase without worry Warranty is one year. Professional after-sale one -to-one Provide remote assistance services |
Application Field
 |
 |
 |
| Chemical Industry | Compound Fertilizer Industry | Engineering Plastic Industry |
 |
 |
 |
| Feed Industry | Food Additives Industry | Medical Intermediate |
| Model | ZSG-1000G |
| Voltage (V/Hz) | (3 PH) AC380/50 |
| Total Power(KW) | 3.5 |
| Capacity (bag/h) | 400 (depending on the fluidity of the material and the size of the bag mouth) |
| Weighing accuracy | ±0.2% |
| Air pressure (Mpa) | >0.6 |
| Air consumption (m3/h) | 18 |
| Suitable Bag Size(LXW)(mm) | (900-1000)X(450-550) |

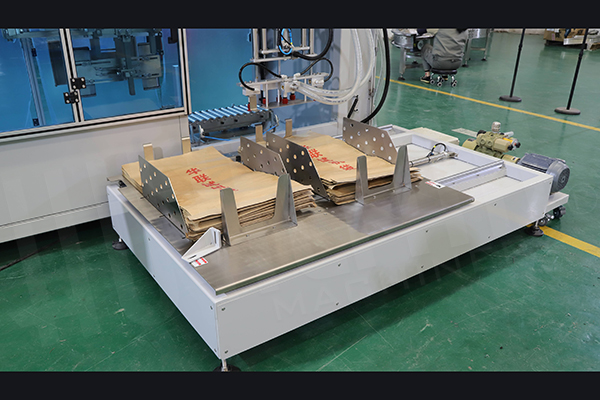

It is very flexible in use and can replace packaging bags of different specifications in a short time.

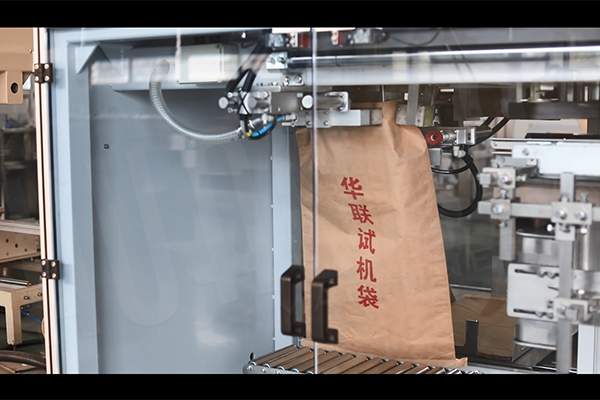

Our bagging machine has the function of automatically detecting whether the bag is in place.
