| √ | High Speed | √ | Heavy-duty Sealing |
| √ | High Quality | √ | Stable |
| √ | Widely Application | ||
| √ | Double Security |
Product Advantages

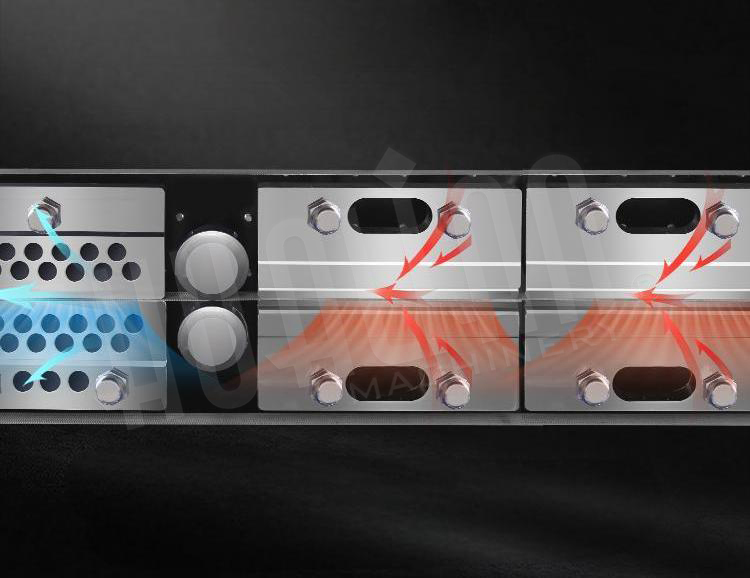

| Widened Copper Blocks For Stable, High-Quality Sealing This continuous band sealer upgrade a pair of pure copper heating and cooling blocks, double sets of widened heating and cooling blocks Not only enhanced thermal stability, but also greatly improved the scope of application and quality. Only high-quality components can make the bag more evenly heated and the sealing effect more effective. |  |

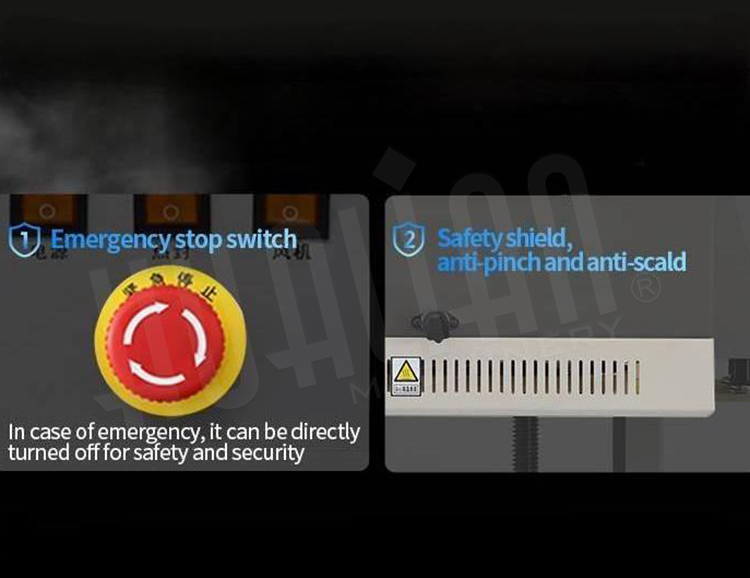

 | Double Security It has a emergency stop switch, in case of emergency, it can be directly turned off for safety and security. Safety shield anti-pinch and anti-scald. |

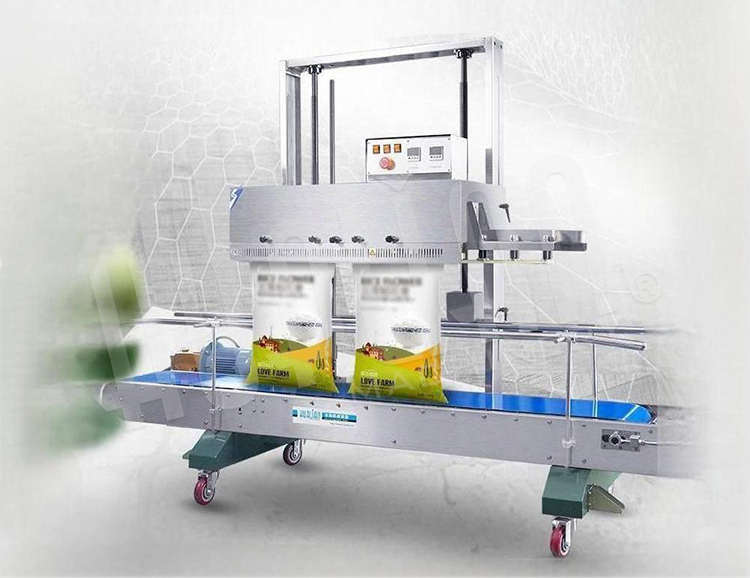

| Supports 60kg Heavy-duty Sealing, Fits Various Bag Sizes This sealing machine is designed for heavy-duty bag packaging with a load capacity of up to 60kg. It features a widened conveyor belt (350mm width) capable of continuous operation on a production line. The sealing head height is adjustable from 300mm to 900mm, offering flexibility for various bag sizes. With a wide single-lift range, the machine adapts easily to different packaging requirements. It supports sealing positions up to 100mm from the bag opening, making it suitable for larger and heavier bags. |  |

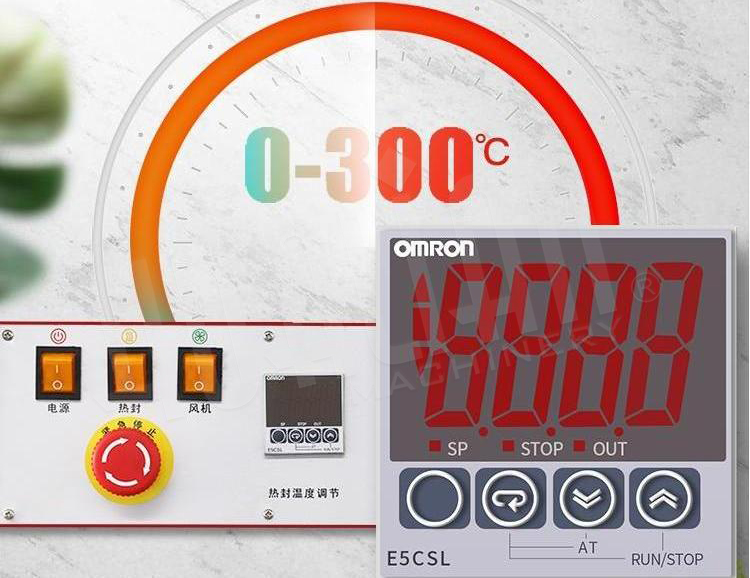

 | Independent Temperature Control Cabinet Design Imported high-precision Omron temperature control chip, Intelligent digital temperature controller with high precision. |

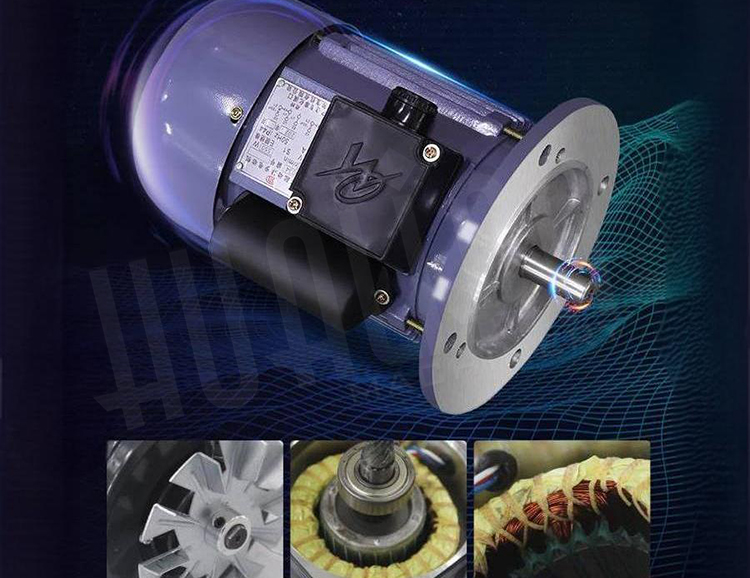

| High Speed This heavy-duty bag sealing machine is driven by a 550W AC motor, It is suitable for the packaging of large bags. the standard model cannot adjust the speed. If you need to adjust the speed you need to install a frequency converter. |  |
| Convenience Of After-sales Repair Excellent after-sale purchase without worry Warranty is one year. Professional after-sale one -to-one Provide remote assistance services
|
Application Field
 |  |  |
| Food Sealing Bag | Food Sealing Bag | Food Sealing Bag |
 |  | |
| Food Sealing Bag | Food Sealing Bag |
| Modle | FRM-1370AL/M | FR-1370AL/L | FR-1370AL/T |
| Voltage (V/Hz) | AC 220/50 110/60 | ||
| Motor Power (W) | 750 | 100 | |
| Sealing Power (W) | 300×4 | ||
| Speed (m/min) | 8 | 0-10 | |
| Sealing Width (mm) | 10 | ||
| Temperature Range (°C) | 0-300 | ||
| Distance from Sealing Center to Conveyor Table (mm) | 330-530 | 450-900 | — |
| Distance from Machine Head to Floor (mm) | 1300 | ||
| Conveyor Table Size (L×W)(mm) | 1900×300 | 2400×350 | — |
| Max. Conveyor Loading for Single Package (kg) | ≤20 | — | |
| Overall Conveyor Loading(kg) | ≤60 | — | |
| External Dimensions(L×W×H)(mm) | 2310×550×1100 | 2430×740×1450 | 1125×620×1680 |
| Net Weight(kg) | 150 | 250 | 80 |
We are a factory manufacturing packaging&printing machines and we provide perfect OEM and after-sale service. We export machines to over 108 countries since 1995.
We have passed ISO9001:2008,ISO14001,OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Our Hualian products have 7 categories and more than 200 products. We have nearly 30 years of export experience and export to more than 200 countries. The distributors of different categories and countries are different. You can consult our sales for details.
We have rich experience in exporting products. For the common problems of conventional products, we have compiled relevant information sets (FAQ Q&A, unpacking videos, after-sales videos, etc.); at the same time, we have a professional technical team. If you encounter special problems, our sales staff will organize technical groups to provide online guidance.
Each of our machines comes with a set of random accessories. If you have additional needs, you can reserve 1-2 years of easily damaged accessories when you purchase the machine. In addition, you can purchase them together when you purchase the next time. Even if it is an iterative accessory, Hualian will continue to provide it.
1) Before delivery, you can come to our company for on-site operation and training
2) You can apply for paid customer on-site installation
3) For Hualian’s VIP customers and professional dealers, you can apply for local or off-site training of sales and technical teams every 1-2 years
Email, real-time online communication, online video conferencing, domestic and foreign exhibitions, domestic and foreign customer visits.
Suitable for all bags that can be heat-sealed.
Standard single heating, and double heating can also be customized.
Patterns, plain weaves, and stripes are all OK.
The vacuum effect is not as good as that of the traditional vacuum machine. There is no air nozzle and it can only be slightly vacuumed.
The coding vacuum sealer combines the functions of coding (printing information) and vacuum sealing (sealing packaging). It is usually used to code the product during the packaging process and simultaneously achieve vacuum sealing when sealing to extend the shelf life of the product and maintain the freshness of the product. For products with low vacuum requirements, it is equivalent to combining the functions of vacuum machine, sealing machine and inkjet printer.
If the machine is used frequently, more than 4 hours a day, it is recommended to perform professional maintenance every three months; if it does not exceed 4 hours a day, it is recommended to perform maintenance every six months, mainly depending on the use environment and product.
Suitable for thicker bags, 0.18~0.5mm PE PP thicker product bags can be heat sealed
